Powder products
Compatible with suitable auger or other powder dosing systems, subject to flowability and dust-control review.
Premade-Pouch Packaging Machines

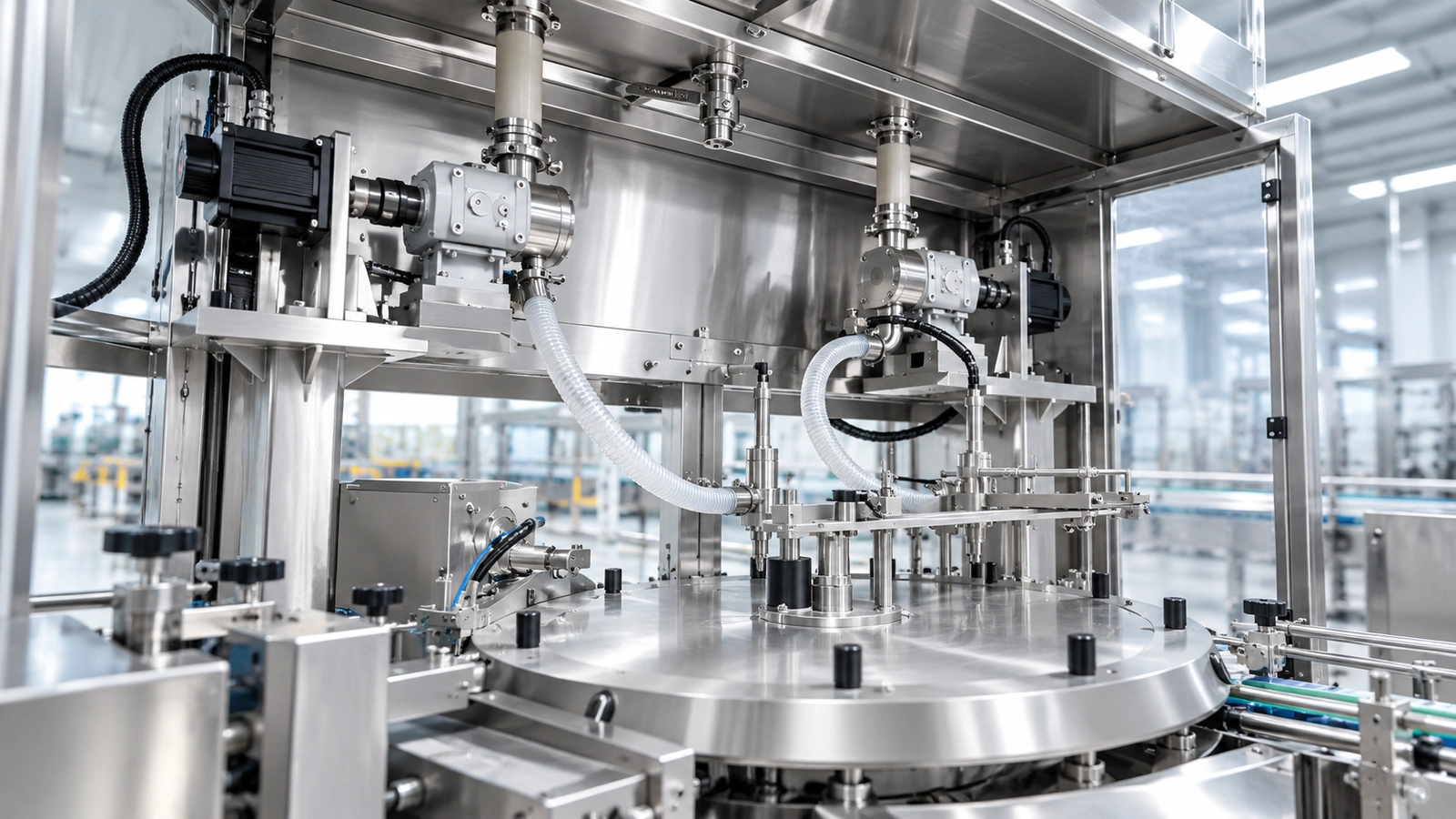

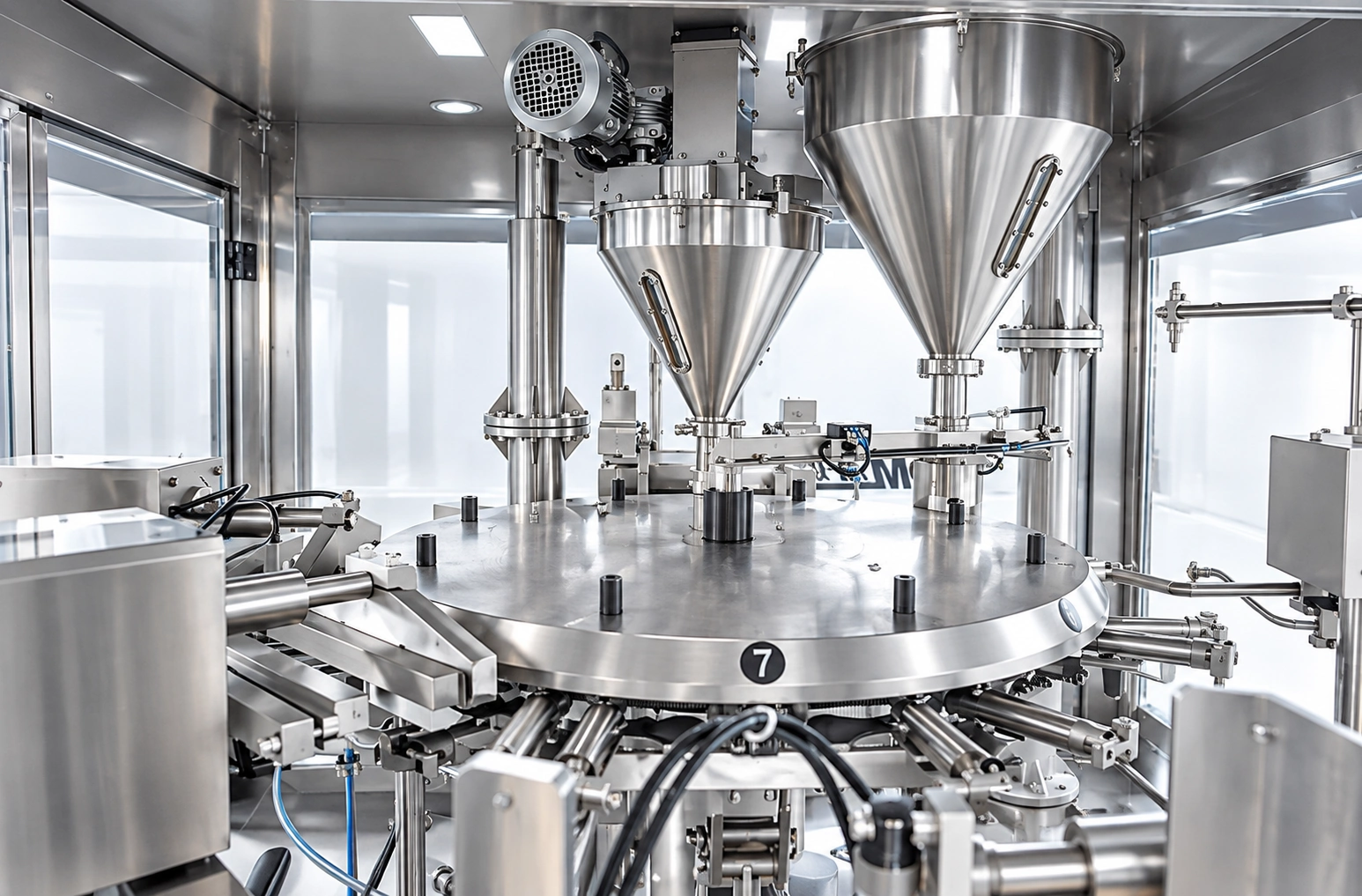

Automatic Rotary Premade Pouch Packing Machine
An intelligent rotary premade-pouch platform for powder, granule and liquid filling, integrating pouch feeding, opening, inspection, filling, deaeration, sealing and discharge in one automated process. Designed and manufactured for powder, granule or liquid products with the appropriate filling configuration. Review the working principle, performance features and available configuration details below when specifying your industrial project.
- 50–5000 g is the combined series coverage, not the capacity of one individual model.
- Powder, granule or liquid filling modules are selected to suit the material; they are not all standard equipment.
- Opening inspection, weighing correction and controlled sealing support consistent automated packaging.
- Series weighing range
- 50–5,000 g
- Maximum output
- Up to 1,200 bags/h
- Filling options
- Powder / granule / liquid
Product Essentials
Everything needed for a quick technical review.
Select a topic from the directory. The content stays in one focused workspace for faster comparison.
Typical Technical Data
Technical specifications
Listed values apply to the identified configuration. Confirm material conditions, utilities and optional equipment before selection.
| Parameter | Weighing range: 50–500 g | Weighing range: 500–2,000 g | Weighing range: 1,000–5,000 g |
|---|---|---|---|
| Production capacity (bags/h) | 600–1,200 | 600–1,000 | 600–1,000 |
| Maximum pouch size, W × H (mm) | 210 × 350 | 300 × 450 | 350 × 500 |
| Minimum pouch size, W × H (mm) | 100 × 100 | 220 × 200 | 300 × 250 |
| Weighing range (g) | 50–500 | 500–2,000 | 1,000–5,000 |
50–5000 g is the combined series coverage, not the capacity of one individual model.
Final equipment dimensions, utilities and performance must be confirmed before quotation.
Applications
Automatic Rotary Premade Pouch Packing Machine: industrial applications
Applications include powder products and granular products. Confirm material properties and process conditions before selecting the equipment configuration.
Granular products
Can be paired with an appropriate weighing or volumetric feeder for free-flowing granules.
Liquid products
Can be equipped with a product-specific liquid filling system selected for viscosity and dosing requirements.
Multiple pouch formats
Supports premade pouches within the published width and height envelope of the selected model.
Working Principle
From feed preparation to finished product.
The process route is selected around the material and product targets.
Pouch feeding
A vertical pouch magazine and customized suction pickup present premade pouches to the rotary transfer system.
Pouch opening
The opening mechanism prepares each pouch for filling.
Opening inspection
The machine verifies that the pouch has opened correctly; unsuccessful pouches bypass filling to reduce product and packaging waste.
Primary filling
A product-specific powder, granule or liquid filling module dispenses the main dose.
Check-weigh correction
Where configured, online weighing and fine top-up bring the pack to its target weight.
Deaeration or vacuum
Bag patting and air removal compact the contents; online vacuum processing can be incorporated when required.
Hot sealing
The filled pouch is heat-sealed to form a secure closure.
Cold pressing
The heated seal is cooled and pressed for a clean, consistent finish.
Pack discharge
Finished pouches leave the machine for downstream inspection, conveying or case packing.
Performance Highlights
Process performance shaped around the product.
Final performance remains dependent on feed properties and engineering confirmation.
Broad pouch compatibility
The vertical feeding system and customized suction pickup accommodate multiple premade-pouch formats.
No-open, no-fill protection
Opening detection prevents filling when a pouch has not opened correctly, reducing product and pouch waste.
Pre-fill plus fine top-up
Primary filling and online check-weigh correction balance throughput with dosing consistency.
Controlled deaeration
A dedicated bag-patting and deaeration arrangement removes trapped air and reduces finished-pack volume.
Online vacuum capability
Vacuum treatment can be incorporated for products and pack formats that require reduced residual air.
Hot-seal and cold-press finishing
Two-stage seal treatment supports a flat, secure closure and reduces the risk of seal defects.
Rapid pouch-width changeover
One-touch width adjustment minimizes manual gripper setup when changing pouch formats.
Fully enclosed dust control
The sealed machine frame contains airborne powder and facilitates centralized dust collection.
System Configuration
Standard process path with project-specific options.
Core equipment and auxiliary systems are selected around the process duty.
Pouch format
Use the pouch or film format and dimensions listed for the selected configuration.
Filling module
Confirm the dosing arrangement for the material and required fill quantity.
Sealing and controls
Configure the sealing conditions and operating sequence for the selected pouch and product.
Selection Support
What we need to confirm the final design.
Share the following product, pouch and production information for an efficient preliminary review.
Product name and physical formBulk density and flowabilityParticle size or liquid viscosityTarget fill weightRequired dosing accuracyPouch type and materialPouch width and heightTarget production capacityDeaeration or vacuum requirementSeal specificationDust-extraction requirementDownstream line interface
