Review kneading equipment for high-viscosity, elastic and semi-solid materials, including screw-extrusion and hydraulic tilting configurations.
Screw-discharge production kneading

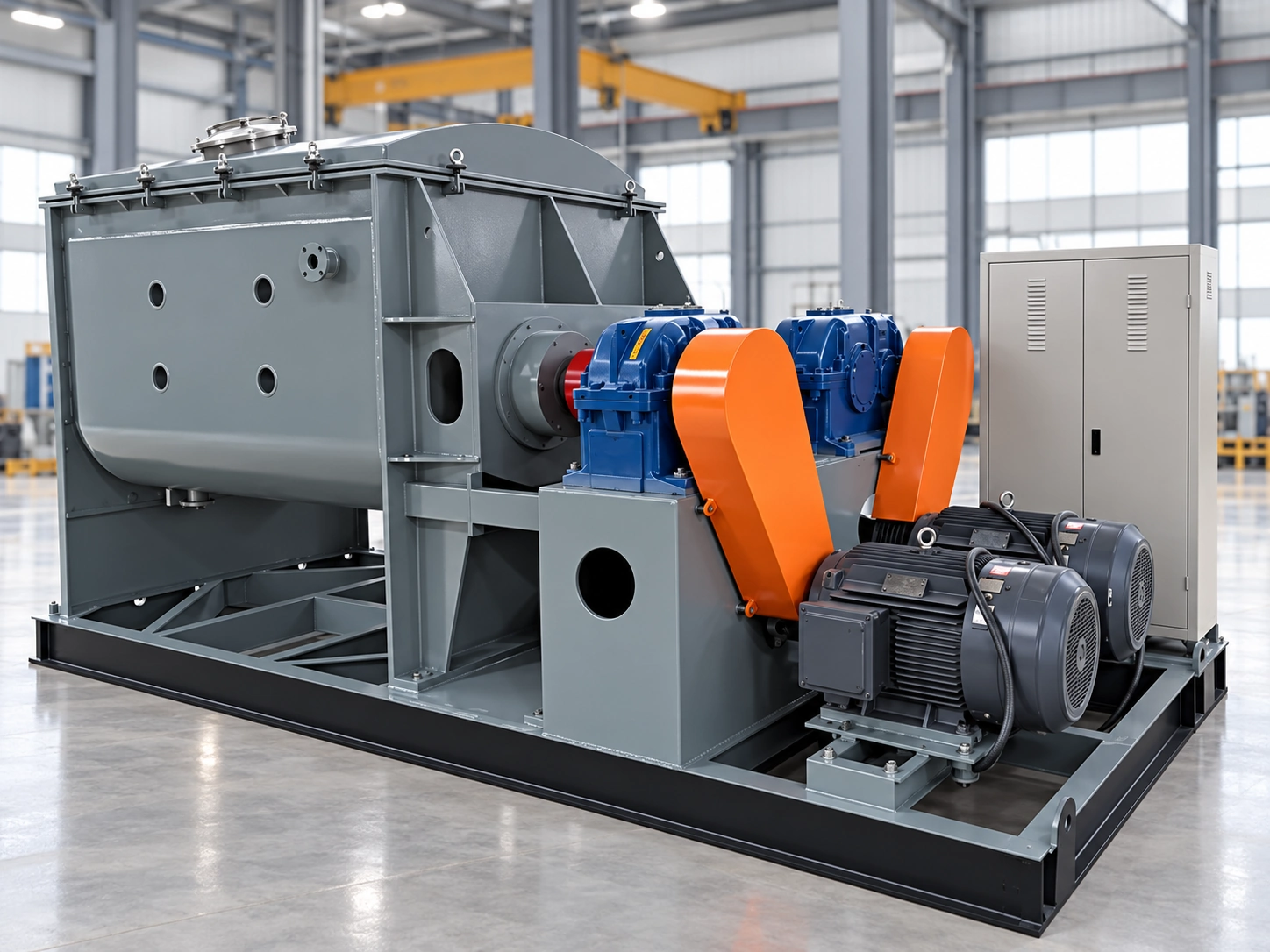

3000 L screw-discharge Z-blade kneader for batch processing and discharge of viscous materials. The blades shear and mix the compound while the screw handles unloading; an extrusion die and heating jacket depend on the selected configuration.
Request Details
Batch kneading with screw discharge

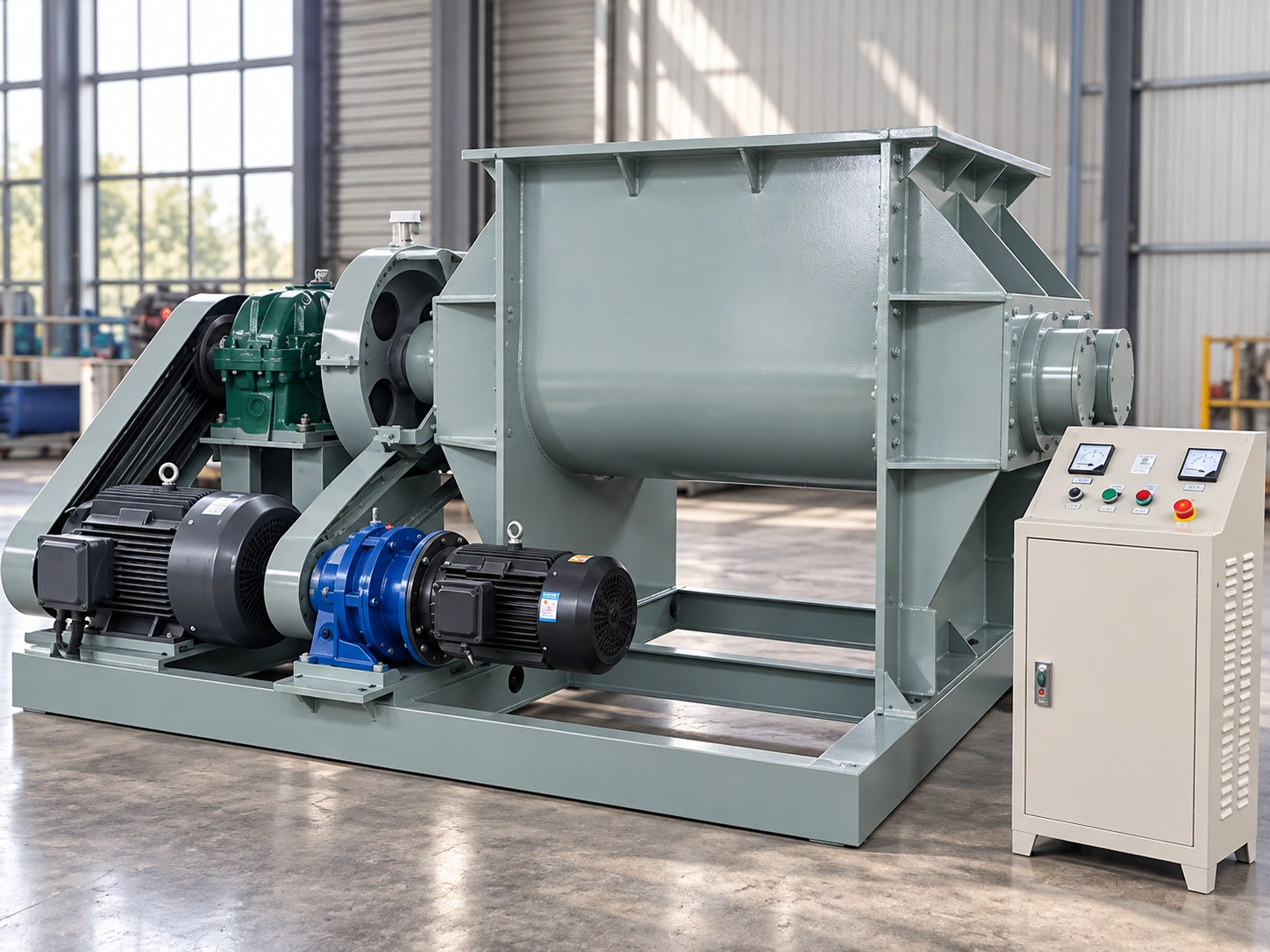

500 L screw-discharge Z-blade kneader for batch mixing and unloading of viscous pastes. Previous technical data lists a 15–37 kW main motor range and 37/21 rpm blade speeds; select the drive for viscosity and batch load.
Request Details
Heavy-duty compound kneading

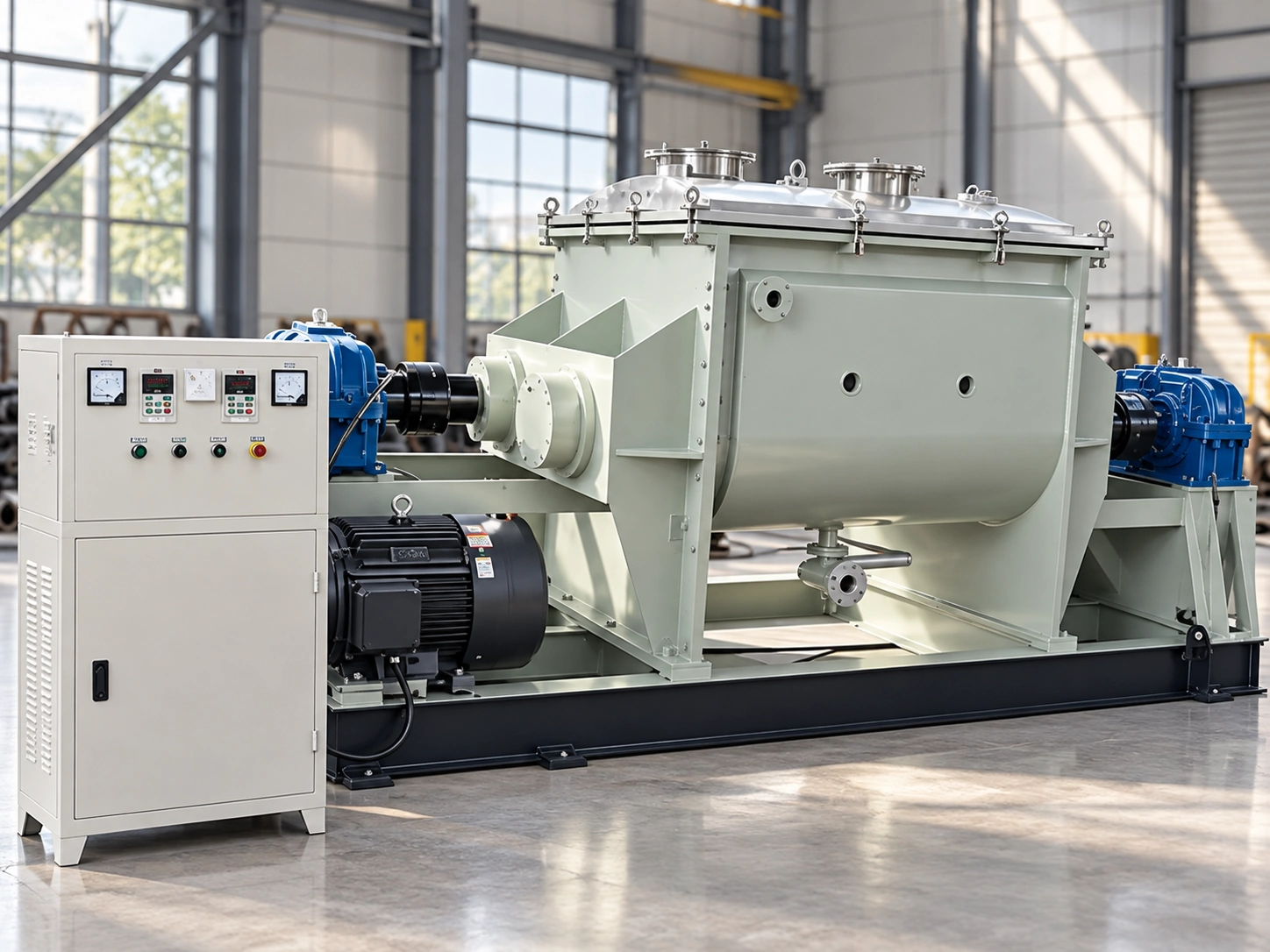

1500 L heavy-duty Z-blade kneader for viscous, semi-dry and elastoplastic materials. Selection depends on material resistance, batch load and temperature requirements; motor power and heating configuration require confirmation.
Request Details
Laboratory formulation development

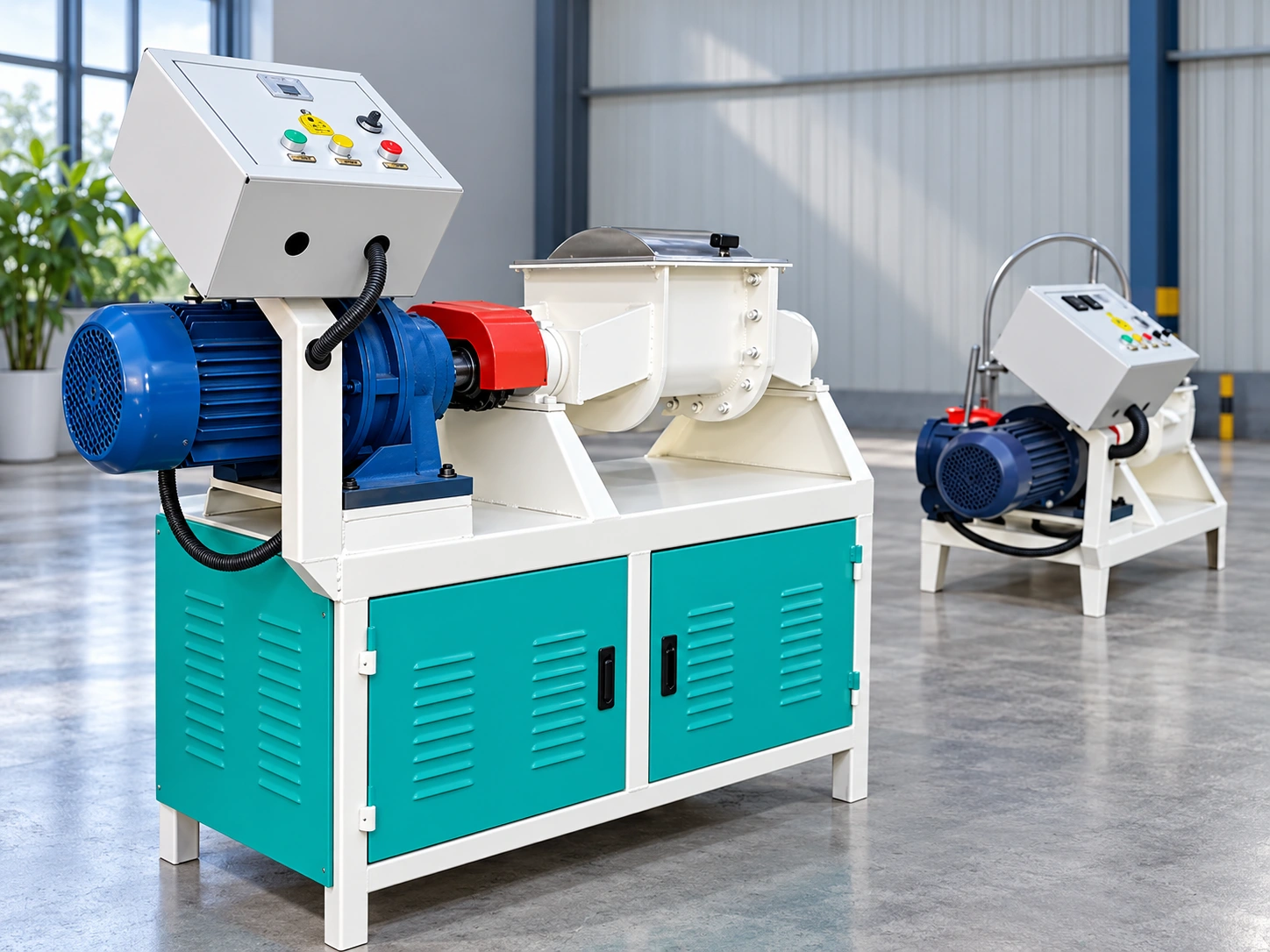

5 L laboratory Z-blade kneader for formulation development and small-batch trials with viscous materials. The supplied table lists a 0.75 kW main motor and 33/23 rpm blade speeds for 5 L; larger sizes are shown for scale-up reference.
Request Details
Hydraulic tilting discharge

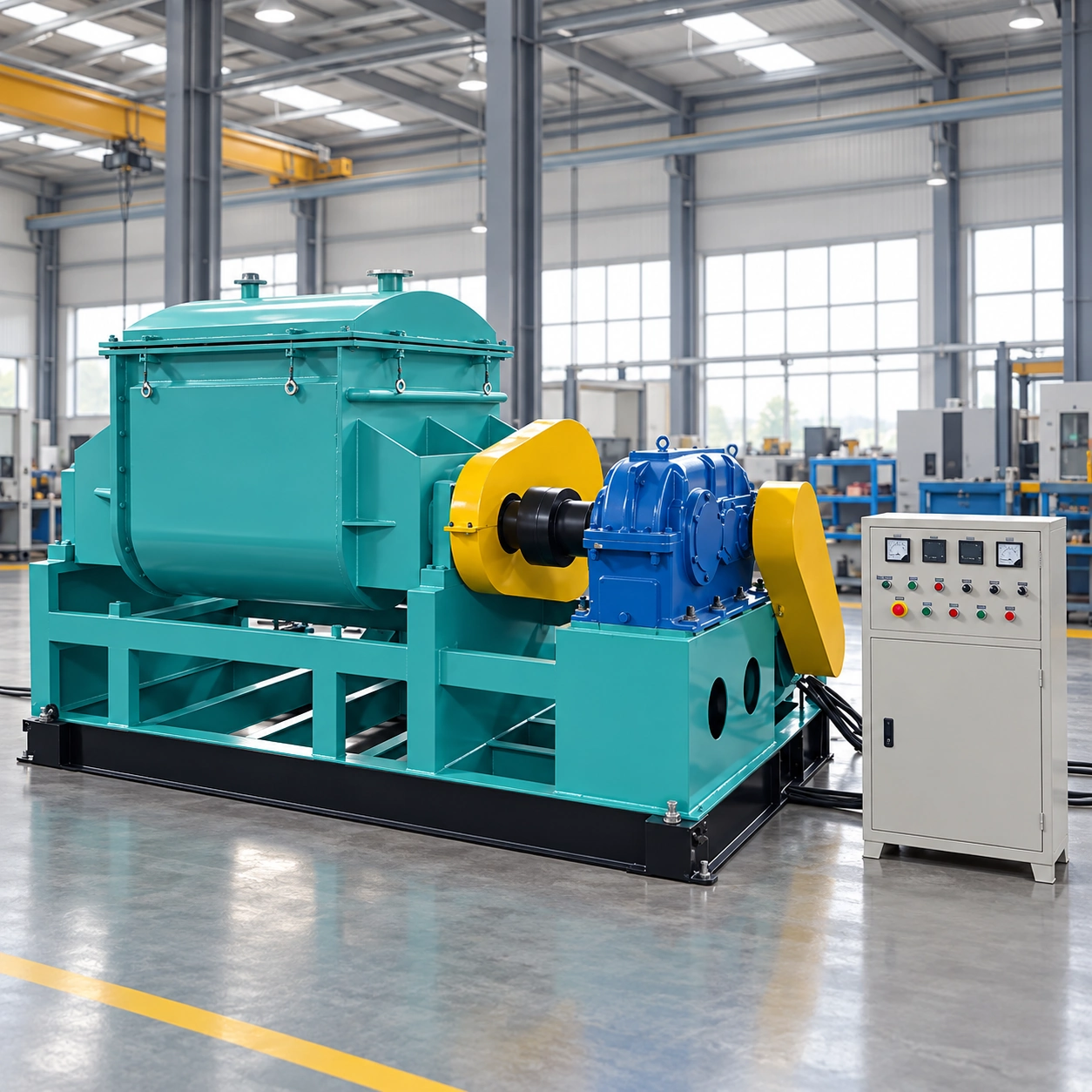

1200 L hydraulic tilting Z-blade kneader combining twin-blade mixing with tilting discharge into a receiving container. Specify cover operation, chamber materials and controls for the compound and handling requirements.
Request Details
Screw-discharge compound mixing

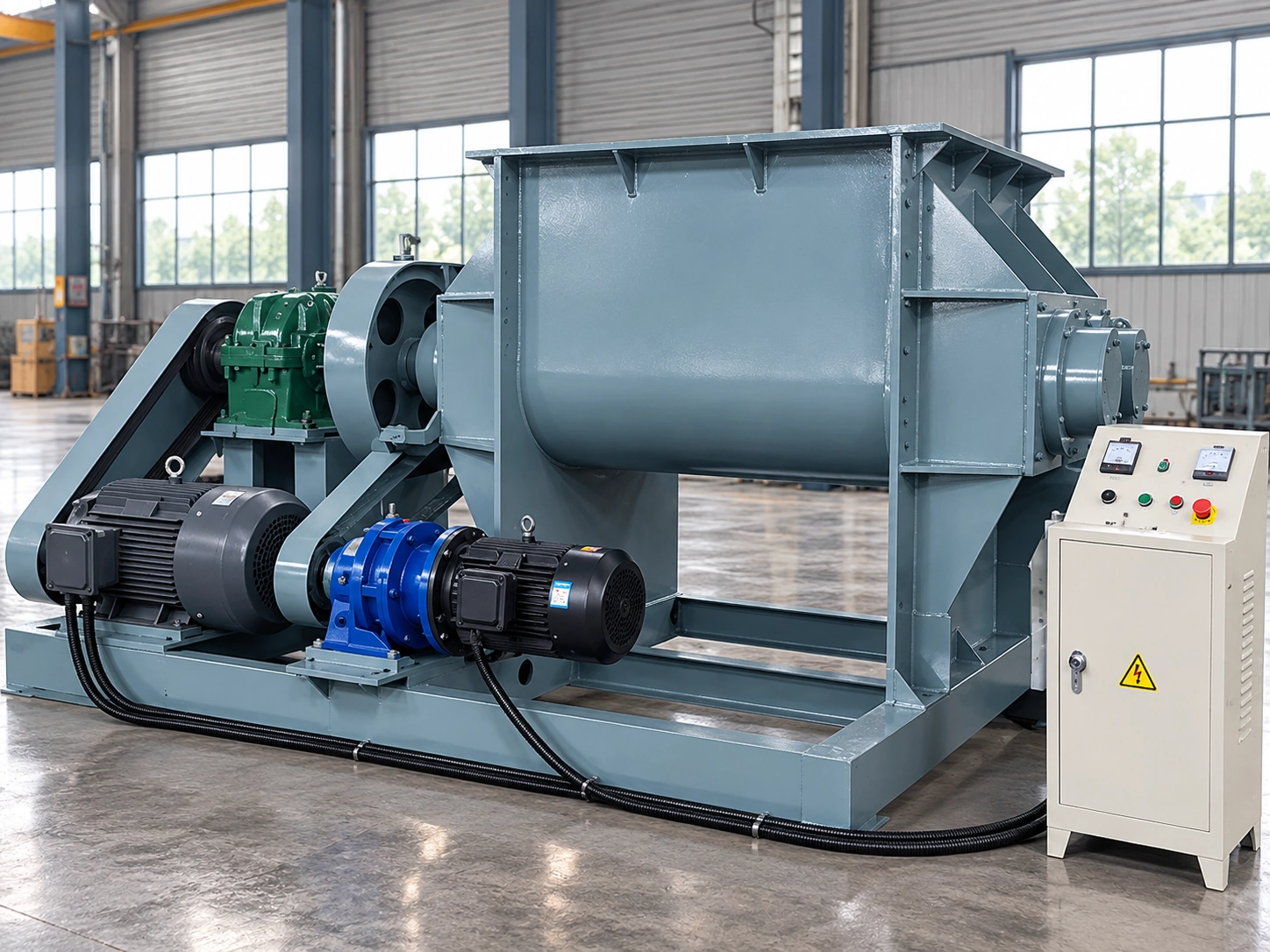

Screw-discharge Z-blade kneader family combining batch kneading with screw unloading for viscous compounds. This page covers series selection; the 500 L and 3000 L pages provide information for those specific sizes.
Request Details
Vacuum mixing of viscous materials
Vacuum Z-blade kneader for high-viscosity compounds requiring processing under reduced pressure. The supplied sheet lists a −0.094 MPa vacuum reference and 5–2000 L series data; confirm seals, vacuum equipment and temperature control for the material.
Request Details
Electric-heated compound mixing

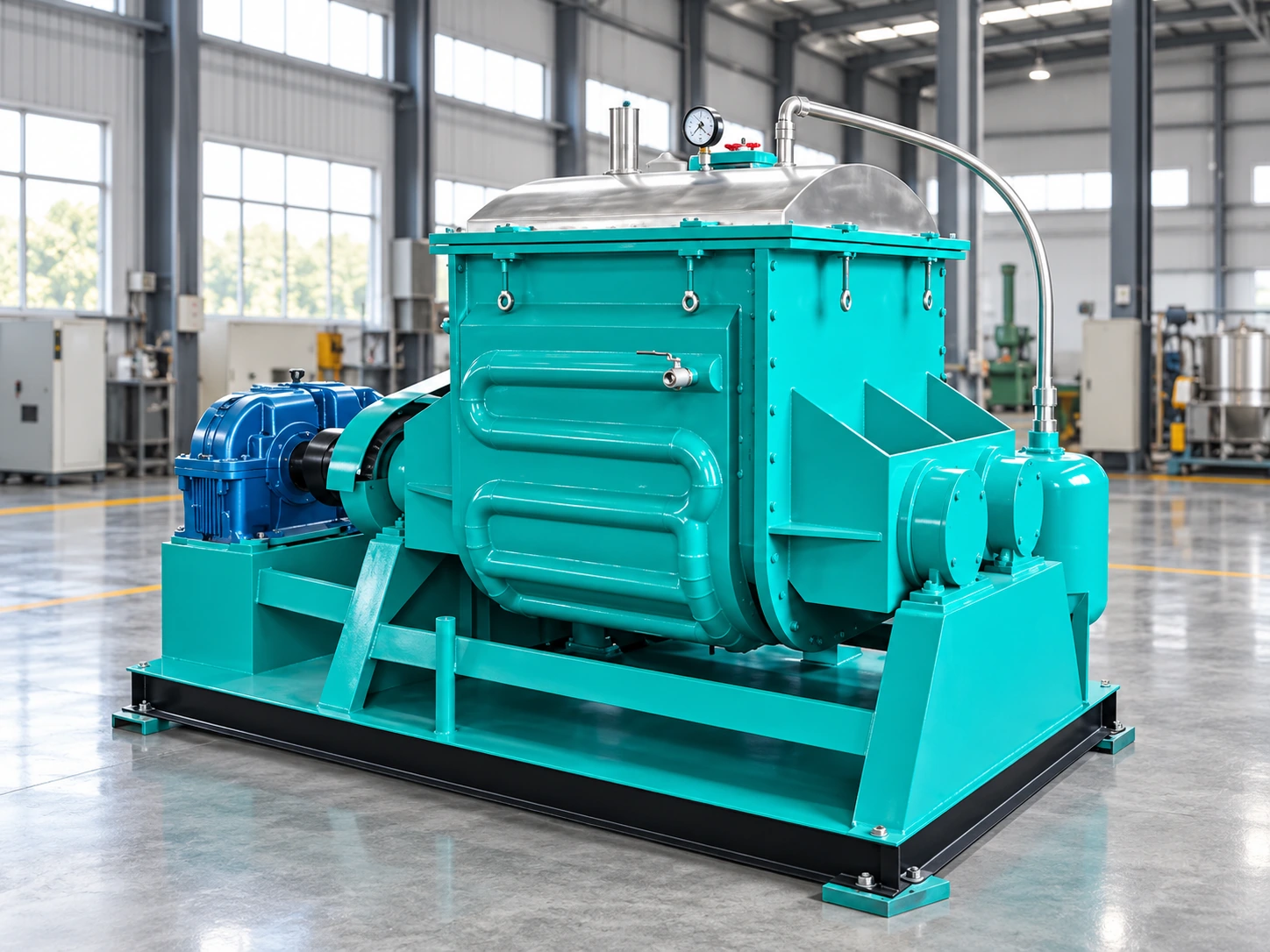

Electric-heated Z-blade kneader combining blade shear and folding with controlled heating for viscous compounds. Compare the 5–2000 L series specifications and select heating, cooling and discharge arrangements for the process.
Request Details
Electric-heated batch kneading

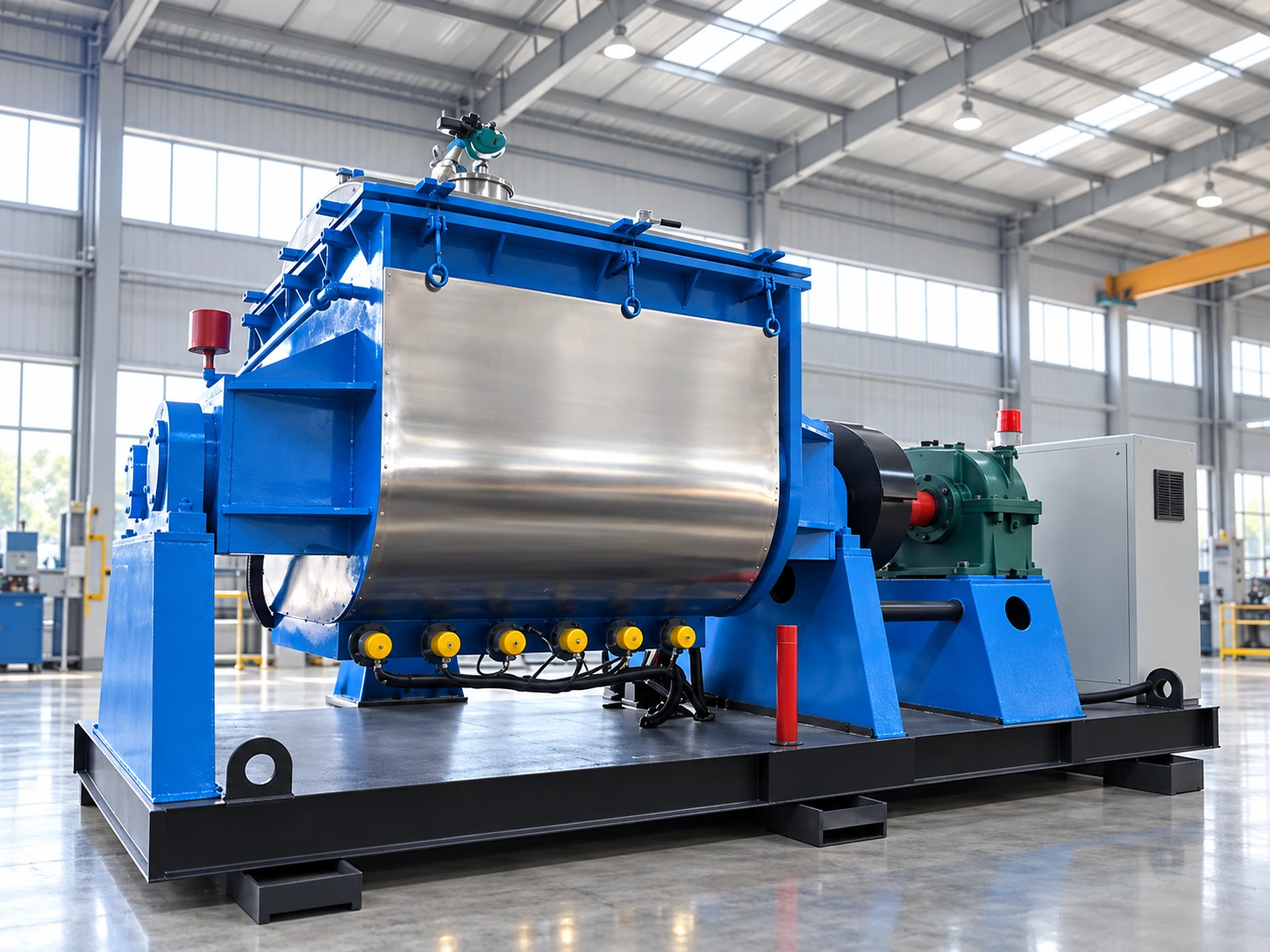

1000 L electric-heated Z-blade kneader for batch processing of viscous pastes and polymer compounds. The supplied series table lists 35/25 rpm blade speeds and 27 kW electric heating for this size; select the drive and usable batch volume for the material.
Request Details
