Screw-discharge production kneading
The 3000 L screw-discharge Z-blade kneader mixer handles high-viscosity materials in large industrial batches. Twin blades provide shear, kneading and dispersion, followed by screw discharge, for semi-dry, rubber-like and viscoelastic compounds.
Screw-discharge production kneading
Select a topic from the directory. The content stays in one focused workspace for faster comparison.
Screw-discharge production kneading

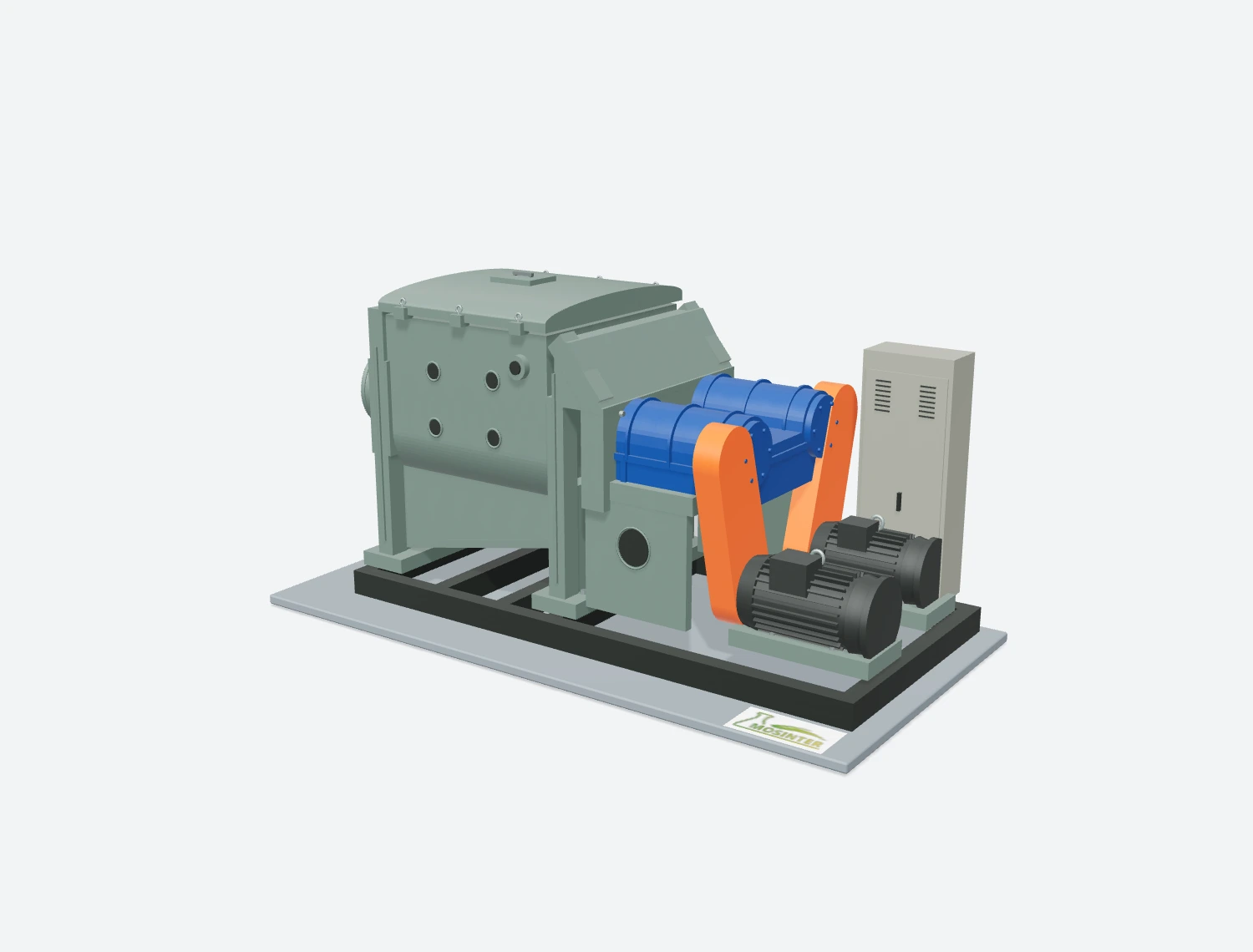

Exterior preview of the pictured configuration. Rotate the model and inspect its visible components. Final dimensions and fitted options are confirmed for your project.
Load the preview to rotate, zoom and inspect the model.
The 3000 L screw-discharge Z-blade kneader mixer handles high-viscosity materials in large industrial batches. Twin blades provide shear, kneading and dispersion, followed by screw discharge, for semi-dry, rubber-like and viscoelastic compounds.
The blades repeatedly move and fold the batch to distribute ingredients and reduce unmixed regions. After kneading, the screw discharges the compound from the chamber; vessel size alone does not establish hourly output or extrusion speed.
Screw-discharge production kneading
Listed values apply to the identified configuration. Confirm material conditions, utilities and optional equipment before selection.
| Parameter | Reference value |
|---|---|
| Equipment type | Screw-Extrusion Kneader |
| Volume (L) | 3000 L |
| Mixing element | Z-shaped kneading blades |
| Material state | Semi-dry / High viscosity / Elastic-plastic |
| Mixing method | Shear + Compression + Kneading |
| Operation | Batch processing |
| Heating / cooling | Optional jacket system |
| Applications | Chemical / Rubber / Battery / Food / Pharmaceutical / Pulp |
Reference values are shown for the listed series. Vacuum, pressure and heating entries apply to the corresponding configurations; usable batch volume and final ratings must be confirmed for the selected equipment.
Final equipment dimensions, utilities and performance must be confirmed before quotation.
Screw-discharge production kneading
Chemical and elastomer applications include high-viscosity sealants, silicone rubber, neutral-cure and acid-cure glazing sealants, resins, plastics and rubber. Other materials include inks, pigments, dyes and battery materials.
Further applications include pulp, cellulose, pharmaceutical and cosmetic materials, and high-viscosity food materials such as chewing gum and bubble gum. Equipment selection depends on the formulation, product-contact requirements and cleaning conditions.
Screw-discharge production kneading
A pair of cooperating, rotating Z-shaped blades subjects the material to shear and compression. This action compounds, kneads and blends semi-dry, rubber-like and other high-viscosity viscoelastic materials, and supports size reduction and dispersion.
Add ingredients in the sequence required by the formulation.
Twin Z-shaped blades handle semi-dry, rubber-like and viscous compounds.
The screw transfers the kneaded material out of the chamber.
Screw-discharge production kneading
Blade motion distributes the batch and helps minimize unmixed zones.
Twin Z-shaped blades handle semi-dry, rubber-like and viscous compounds.
The screw transfers the kneaded material out of the chamber.
Working volume, motor power, heating method and discharge configuration are selected according to the material and required batch size. Share the formulation, viscosity, ingredient addition sequence and intended unloading method when requesting a quotation.
Screw-discharge production kneading
Core equipment and auxiliary systems are selected around the process duty.
Select loading requirements around the formulation and desired batch size.
Choose materials and surface finish for product compatibility and cleaning.
Select the arrangement for the process heat balance and downstream handling.
This page covers the 3000 L screw-discharge configuration with Z-shaped kneading blades. Selection depends on material condition and batch requirements; nominal volume is not the usable charge volume.
Kneading and discharge are consecutive operations: the blades shear, compress and mix, and the screw unloads the material. Refer to the existing technical data for stated ratings and confirm any unlisted drive or installation requirements separately.
Screw-discharge production kneading
Share the following process information for an efficient preliminary review.
