Flat-plate manual top-discharge centrifuge
Flat-Plate Top-Discharge Filtration Centrifuge
Flat-plate top-discharge filtration centrifuge for batch solid-liquid separation. Select the basket and process configuration for your material.
- Fully enclosed high-speed batch filtration for particulate and fibrous suspensions across pharmaceutical, chemical, food, environmental and energy duties.
- Operating capacity and separation performance require confirmation for the selected model and feed.
- Gentle manual top discharge, compact construction, low vibration and GMP-oriented containment support stable, contamination-controlled operation.
- Process
- Basket filtration
- Operation
- Batch
- Discharge
- Manual top discharge
- Model data
- Configuration confirmation required
Product Essentials
Everything needed for a quick technical review.
Select a topic from the directory. The content stays in one focused workspace for faster comparison.
centrifuge Technical Data
Process and configuration data
Listed values apply to the identified configuration. Confirm material conditions, utilities and optional equipment before selection.
| Parameter | Specification |
|---|---|
| Separation principle | Basket filtration |
| Operation | Batch |
| Discharge | Manual top discharge |
| Reference particle separation | Down to approximately 1 µm, subject to testing |
| Basket / bowl dimensions | To be confirmed according to configuration |
| Capacity, speed and motor power | To be confirmed according to configuration |
| Weight and installation dimensions | To be confirmed according to configuration |
| Contact materials and protection package | To be confirmed according to configuration |
Source reference values. Final filter medium, batch capacity and separation performance must be confirmed through material evaluation and engineering review.
Applications
Flat-Plate Top-Discharge Filtration Centrifuge: industrial applications
Applications include pharmaceuticals and food and ingredients. Confirm material properties and process conditions before selecting the equipment configuration.
Food and ingredients
Salt, monosodium glutamate, food additives, starch, sugar and formulated seasoning products.
Chemicals
Gypsum, copper sulfate, potassium chloride, borax, dyes and pesticide products.
Minerals and metal refining
Copper, zinc and aluminum-bearing minerals and other metallurgical suspensions after process review.
Environmental and energy
Sludge, wastewater solids and related filtration duties in environmental and energy applications.
Research and pilot testing
Standard and high-speed models are well suited to research institutions, formulation trials and process development.
Working Principle
From feed preparation to finished product.
The process route is selected around the material and product targets.
Controlled charging
Particulate or fibrous suspension is introduced into the rotating basket within the specified batch-load limit.
Centrifugal filtration
The liquid phase passes through the filter cloth and basket perforations, while solids form a cake on the basket wall.
Cake washing
Wash liquid can be applied when mother-liquor displacement or product purification is required.
Final dewatering
The basket continues at the selected high speed until the cake reaches the required separation condition.
Safe deceleration
The basket is brought to a complete stop before the cover interlock permits access to the process chamber.
Manual top discharge
The separated solids are removed from the top without scraper contact, helping preserve crystal integrity.
Performance Highlights
Process performance shaped around the product.
Final performance remains dependent on feed properties and engineering confirmation.
Gentle crystal handling
Manual top discharge avoids scraper contact and helps reduce crystal breakage.
High separation performance
High rotational speed and separation factor provide effective filtration and fine-particle capture.
Fine-particle capability
The operating range is selected for the material and confirmed for the quoted configuration.
Laboratory and pilot suitability
The compact models are frequently selected by research organizations as test centrifuges.
Compact, stable construction
Simple operation, low center of gravity, low vibration and smooth running support convenient daily use.
Service-friendly design
The small footprint, straightforward structure, low fault rate and convenient maintenance support long service life.
GMP-oriented containment
The fully enclosed structure helps prevent material contamination and supports hygienic production requirements.

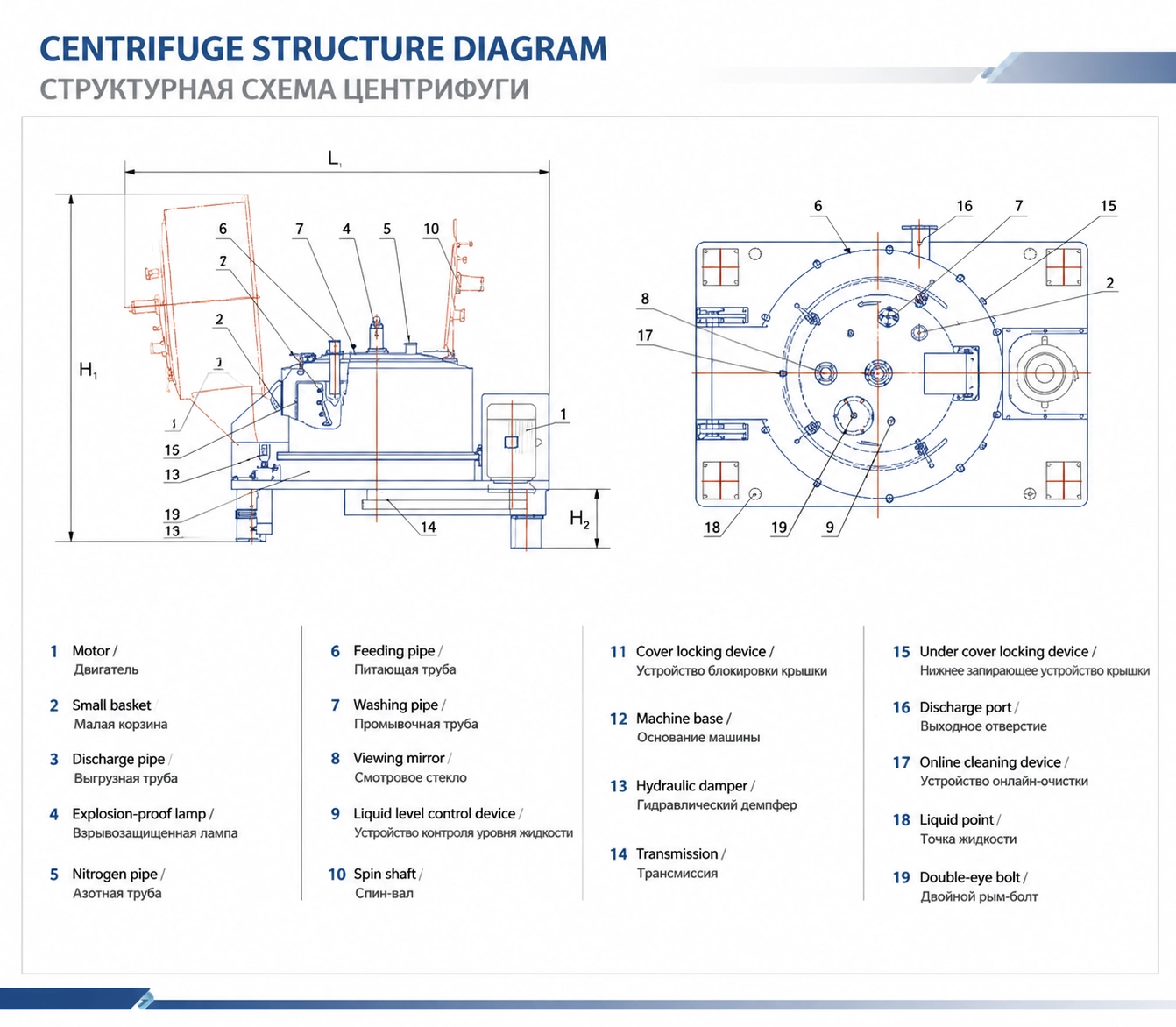

System Configuration
Standard process path with project-specific options.
Core equipment and auxiliary systems are selected around the process duty.
Fully enclosed housing
The enclosed cover and process chamber help prevent product contamination and support GMP-oriented operation.
High-speed basket
The operating range is selected for the material and confirmed for the quoted configuration.
Manual top discharge
Accessible top-side cake removal provides operational flexibility and avoids crystal damage from a mechanical scraper.
Feed and washing connections
Dedicated feed and washing pipes support controlled charging, cake washing and batch repeatability.
Flat-plate structure
A compact, low-center-of-gravity base and vibration-damping arrangement provide smooth, stable operation.
Safety and instrumentation
Cover, speed, vibration and drive protection can be configured to suit the application and operating area.
Selection Support
What we need to confirm the final design.
Share the following process information for an efficient preliminary review.
Material name and feed formRequired capacity or batch sizeInitial and final moistureParticle or product requirementsHeat and chemical sensitivityBulk density, viscosity or flowabilityAvailable utilities and heat sourceContact material and site conditions
