Mineral powders
Continuous blending of mineral powders and related high-throughput bulk solids.
Industrial Mixers
Continuous Industrial Mixer for Metered Blending
A continuous industrial mixer meters multiple materials at defined ratios, blends them for a controlled residence time and discharges the finished mixture without interrupting production. Designed and manufactured for mineral powders and sludge treatment. Review the working principle, performance features and available configuration details below when specifying your industrial project.
- Different materials are metered at defined ratios, mixed continuously and discharged without stopping production.
- Feed rate, mixer speed and discharge rate are coordinated to control residence time inside the chamber.

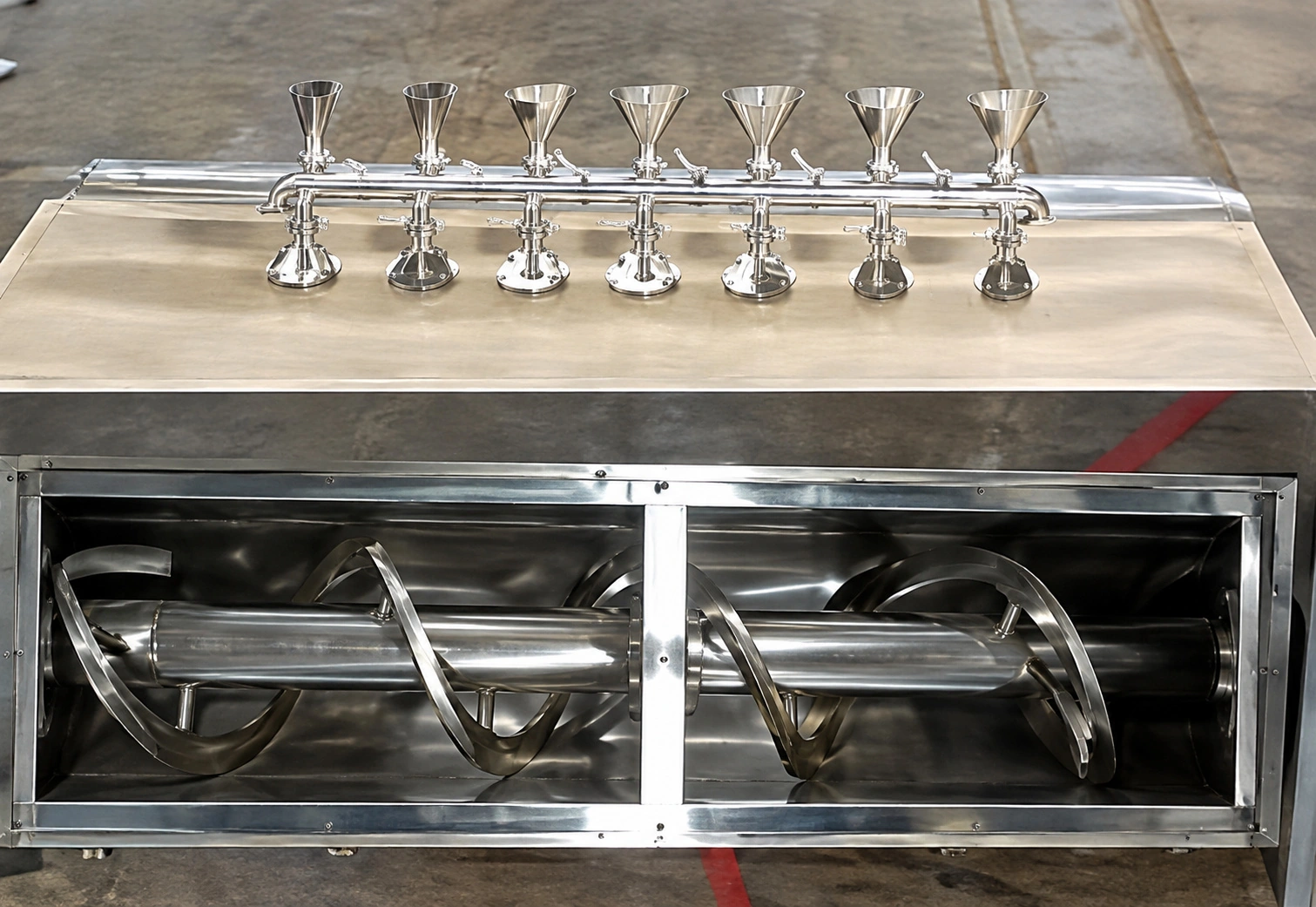

- Ploughshare, ribbon, paddle or twin-shaft paddle agitators can be combined with optional cutters, atomized liquid addition and automatic cleaning.
- Operation
- Continuous
- Agitator options
- Four types
- Residence-time control
- Three coordinated rates
- Speed control
- Variable frequency
Product Essentials
Everything needed for a quick technical review.
Select a topic from the directory. The content stays in one focused workspace for faster comparison.
Product Overview
Continuous Industrial Mixer for Metered Blending
The Continuous Industrial Mixer for Metered Blending receives different materials continuously at preset formulation ratios, blends them inside the mixing chamber and discharges the finished mixture without interrupting production.
Feed rate, agitator speed and discharge rate are coordinated to establish the required residence time. Depending on material behavior, the machine can use ploughshare, ribbon, paddle or twin-shaft paddle agitators; high-speed cutters are available for feeds that tend to cake or agglomerate.
Variable-speed screw or belt conveyors provide controlled feeding. For powder-liquid duties, an atomizing nozzle above the cutter introduces liquid into the actively dispersed powder zone. Typical applications include mineral powders, sludge treatment and other high-throughput processes.
Material ProportioningContinuous FeedingAgitated MixingResidence-Time ControlContinuous Discharge
Typical Technical Data
Technical specifications
Listed values apply to the identified configuration. Confirm material conditions, utilities and optional equipment before selection.
| Parameter | Reference value |
|---|---|
| Equipment type | Continuous industrial mixer |
| Operating sequence | Continuous feeding / continuous mixing / continuous discharge |
| Agitator options | Ploughshare / ribbon / paddle / twin-shaft paddle |
| Primary process control | Feed rate / mixer shaft speed / discharge rate |
| Drive concept | Gear reducer with variable-frequency motor |
| Typical feeding equipment | Screw conveyor / belt conveyor |
| Optional deagglomeration | High-speed cutters |
| Optional liquid addition | Atomizing nozzle above the cutter zone |
| Optional cleaning | Automatic cleaning system |
| Typical applications | Mineral powder / sludge treatment / other high-throughput duties |
Final equipment dimensions, utilities and performance must be confirmed before quotation.
Applications
Continuous Industrial Mixer for Metered Blending: industrial applications
Applications include mineral powders and sludge treatment. Confirm material properties and process conditions before selecting the equipment configuration.
Sludge treatment
Continuous conditioning and mixing duties within sludge-processing systems.
High-throughput production
Other processes requiring proportioned continuous feeding, controlled mixing and uninterrupted discharge.
Working Principle
From feed preparation to finished product.
The process route is selected around the material and product targets.
Material proportioning
Individual components are metered continuously at the specified formulation ratio.
Continuous feeding
Variable-speed screw or belt conveyors deliver the metered materials to the mixer.
Continuous agitation
The selected ploughshare, ribbon, paddle or twin-shaft paddle agitator keeps the material moving and blending inside the chamber.
Residence-time control
Feed rate, agitator speed and discharge rate are coordinated to provide the required time in the mixing zone.
Continuous discharge
The finished blend leaves the mixer continuously, completing an uninterrupted production cycle.
Performance Highlights
Process performance shaped around the product.
Final performance remains dependent on feed properties and engineering confirmation.
Continuous operation
Continuous feeding, mixing and discharge support production duties with high throughput requirements.

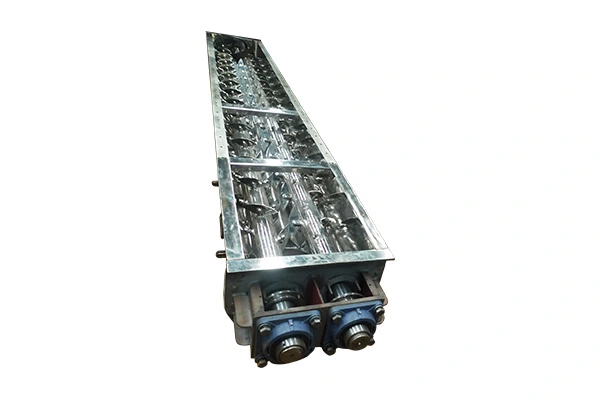

Four agitator configurations
Ploughshare, ribbon, paddle and twin-shaft paddle arrangements are selected according to the material and mixing duty.
Adjustable residence time
Coordinated control of the feed rate, shaft speed and discharge rate adapts the process to the required mixing result.
Variable-frequency speed control
A gear reducer and variable-frequency motor provide adjustable mixer speed; continuous units generally operate at a higher shaft speed than comparable batch mixers.

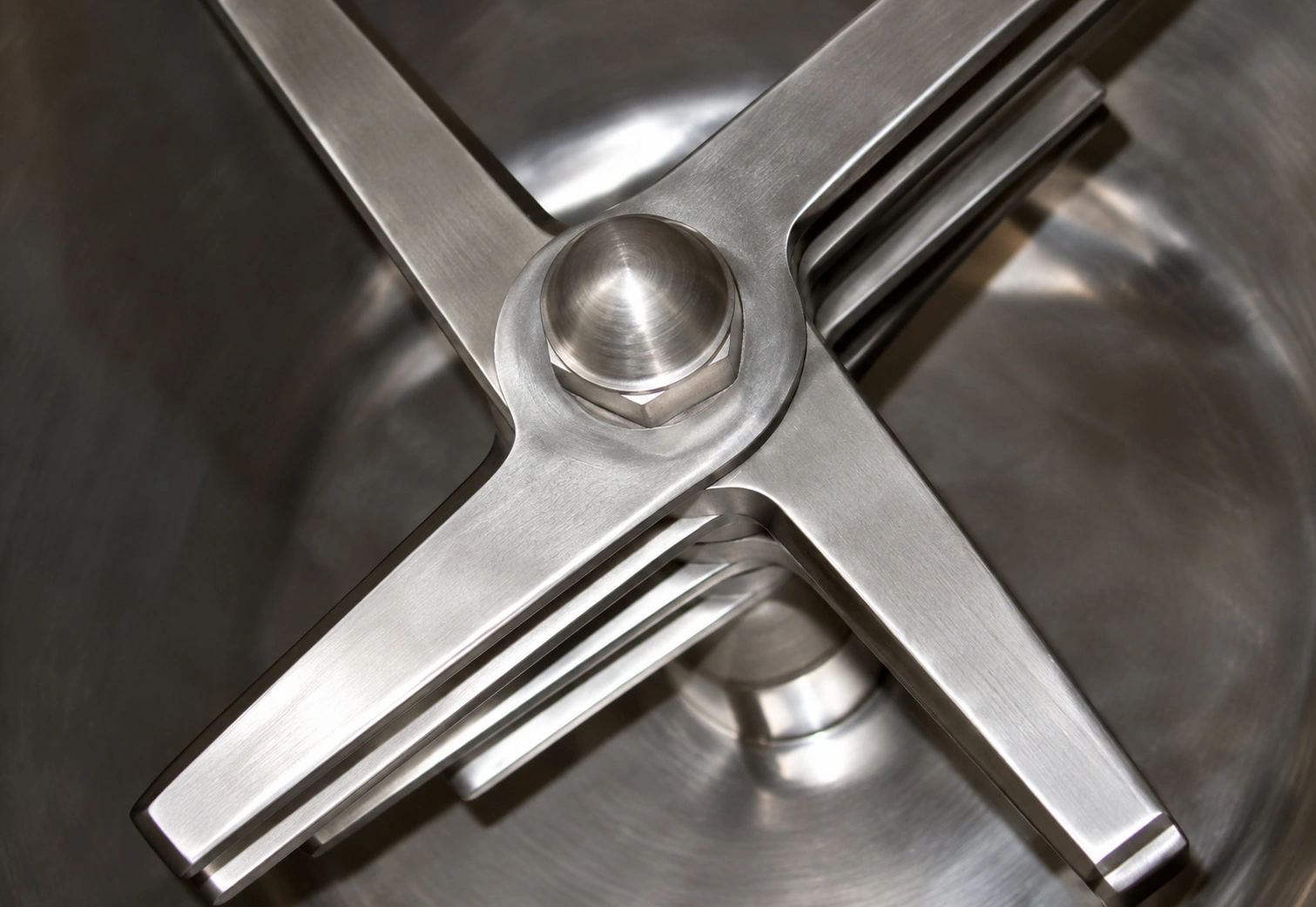

Optional high-speed cutters
Cutters break up and disperse materials that tend to cake or agglomerate.

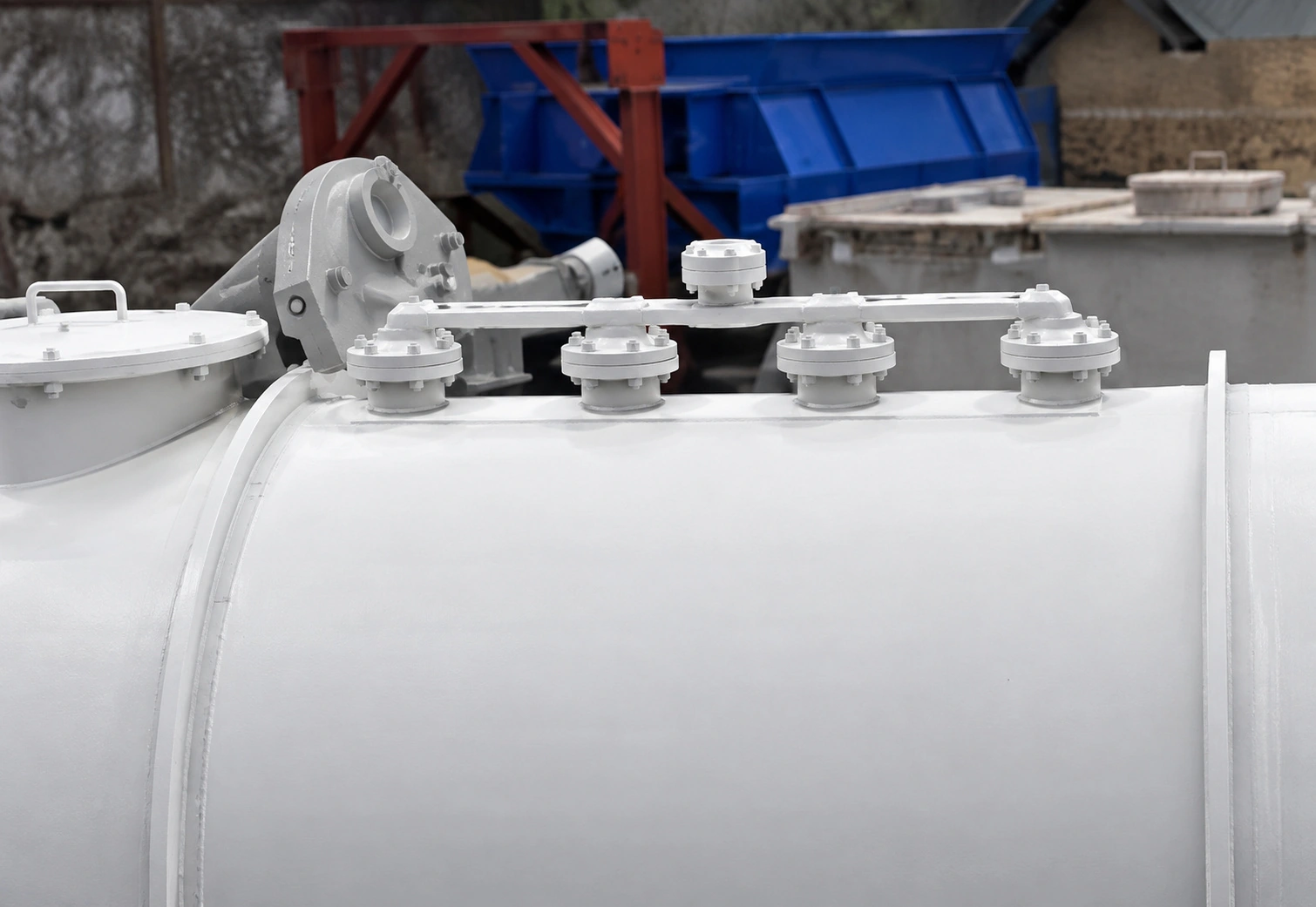

Atomized liquid addition
A nozzle positioned above the cutter introduces atomized liquid into the lower-density, actively dispersed powder zone.
Energy-efficient, gentle mixing
The selected agitator can provide uniform mixing with low energy demand and limited particle breakage.
Optional automatic cleaning
An automated cleaning system can be incorporated where the production and changeover requirements justify it.
System Configuration
Configuration and optional functions
Select options for the material and process. Availability and final scope are confirmed in the equipment specification.

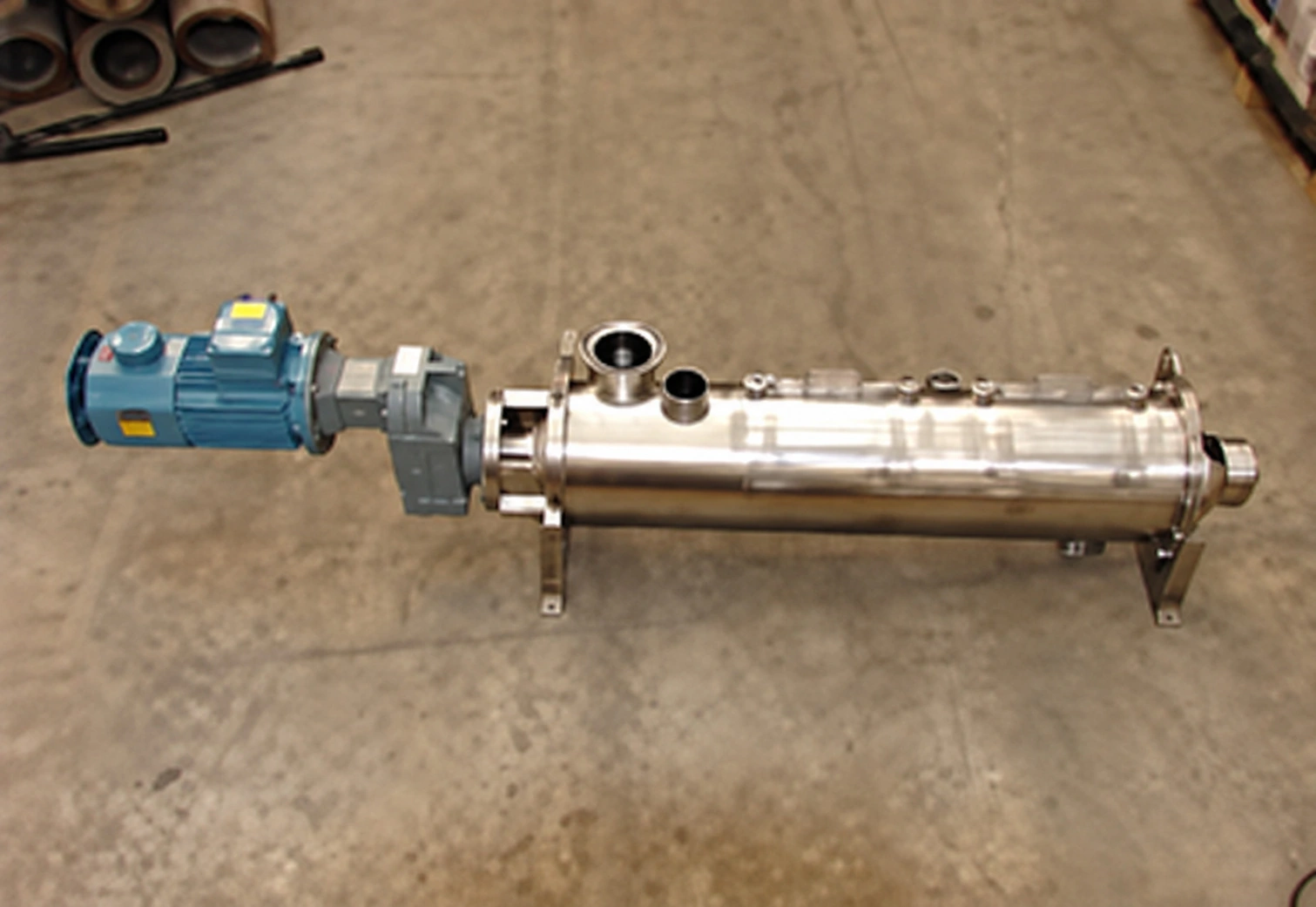

Variable-speed drive
A gear reducer and variable-frequency motor adjust mixer speed to suit the required residence time and mixing result.

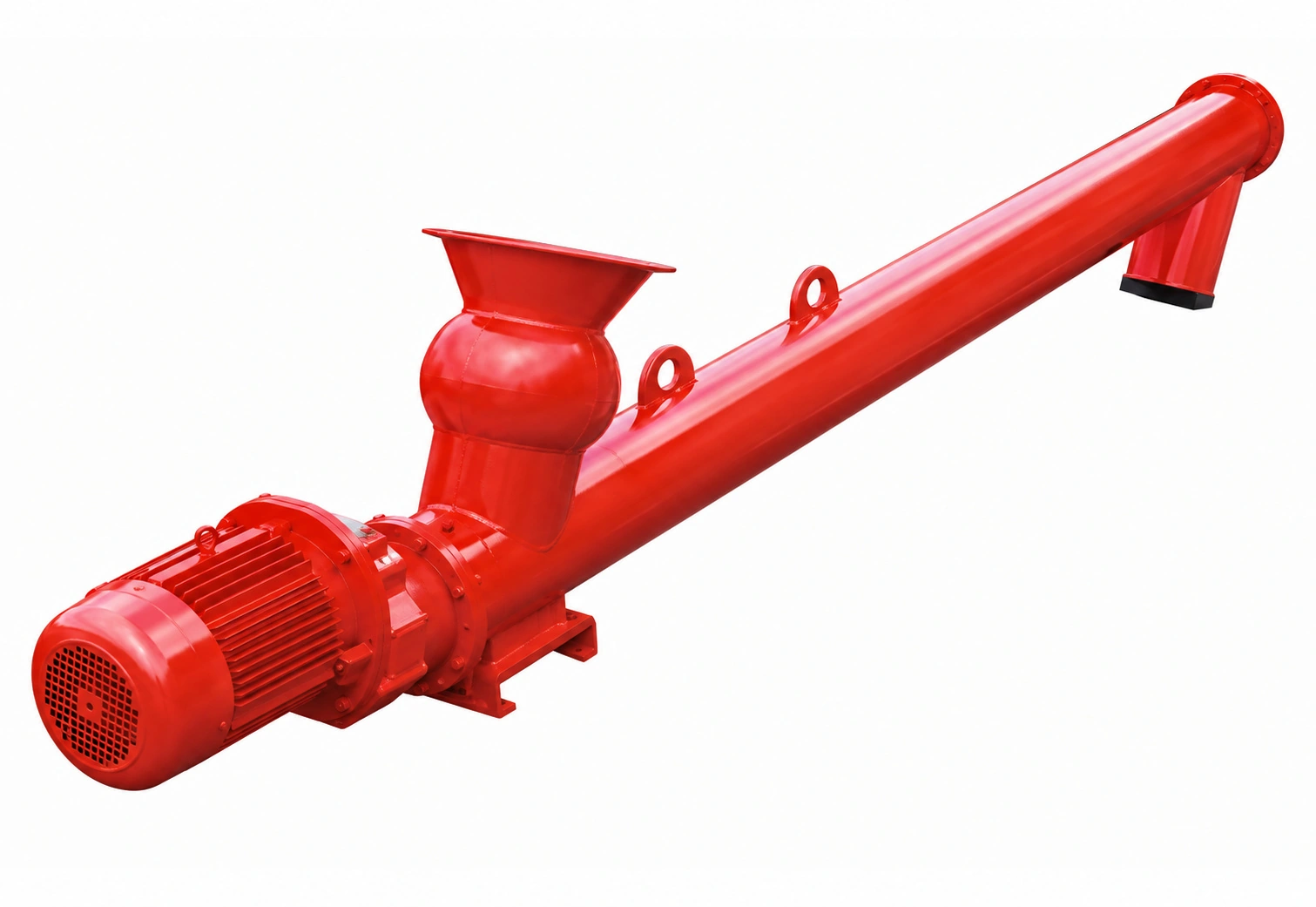

Controlled feeding system
Variable-speed screw or belt conveyors match the incoming component flow to mixer throughput and discharge.

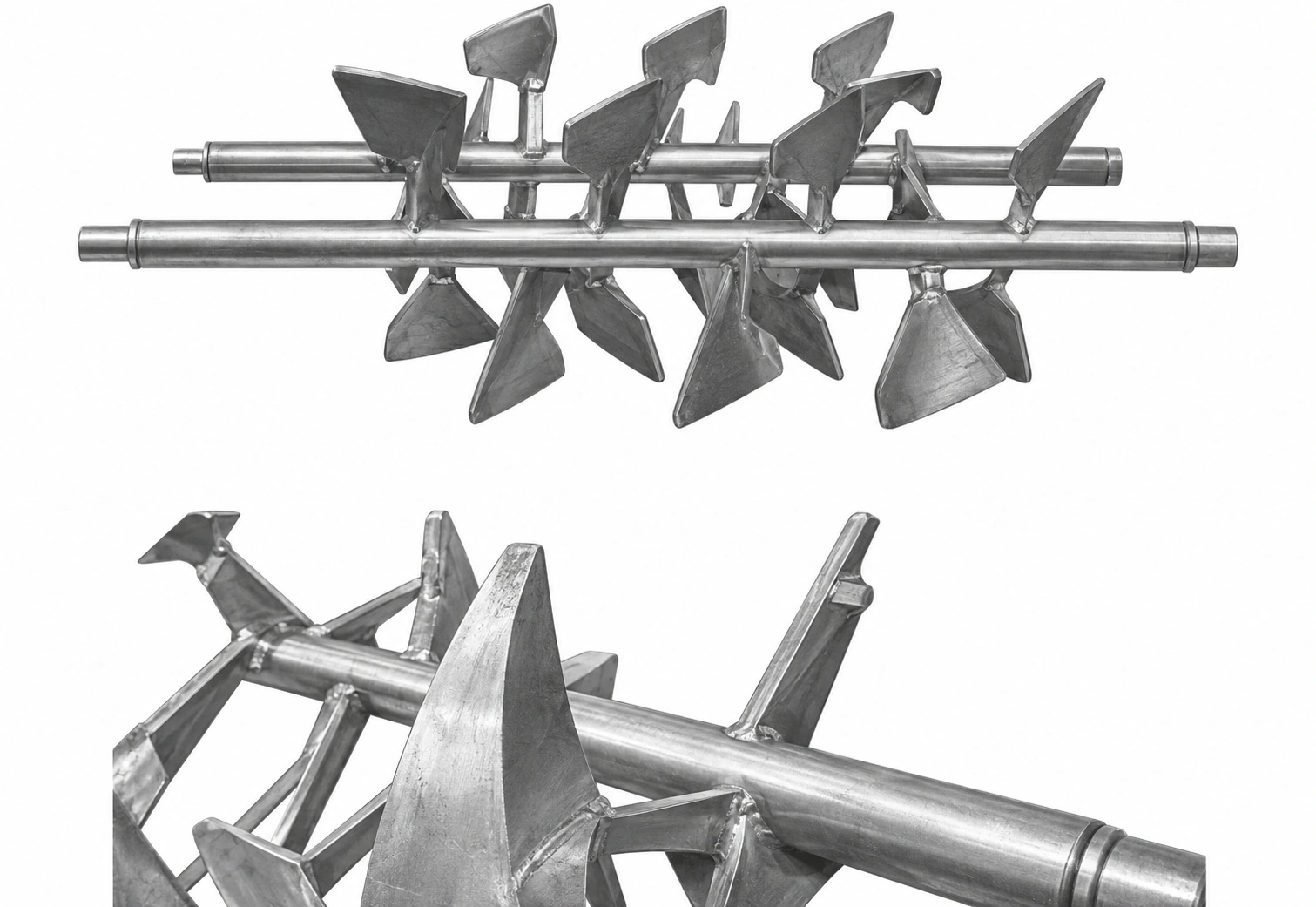

Agitator selection
Ploughshare, ribbon, paddle or twin-shaft paddle arrangements are selected for flowability, agglomeration tendency and throughput.
Chopper and nozzle options
Optional choppers break up agglomerates. Atomizing nozzles can be positioned above the choppers where liquid addition is required.
Continuous dosing and residence time
Variable-speed screw or belt conveyors feed continuously; shaft speed and discharge rate are coordinated to control residence time.
Structure & Options
Drive, agitator, spraying and feeding configurations
Configurable systems match the continuous mixing action, material residence time and throughput to the process duty.
Selection Support
What we need to confirm the final design.
Share the following material, throughput and integration information for an efficient preliminary review.
Material names and formulation ratiosBulk density and particle-size distributionMoisture content and flow behaviorCaking or agglomeration tendencyRequired continuous throughputTarget mixing uniformityRequired residence timePreferred agitator arrangementLiquid-addition quantity and propertiesFeeding equipment and control rangeDischarge rate and downstream interfaceAutomatic-cleaning requirementsContact-part materials
